html5实现一个简单的在线画板

html5实现一个简单的在线画板

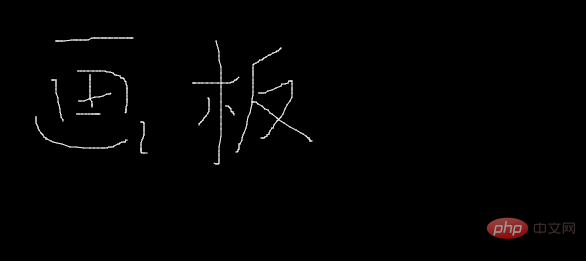

我们先来看看实现效果:

(推荐教程:h5)

html5实现一个简单的在线画板

实现代码如下:

<!DOCTYPE html> <html>     <head>         <meta charset="UTF-8">         <title></title>     </head>     <body>         <canvas id="canvas" width="600" height="600"></canvas>         <script type="text/javascript">             var c = document.getElementById('canvas');             var ctx = c.getContext('2d');              //画一个黑色矩形             ctx.fillStyle = 'black';             ctx.fillRect(0,0,600,300);              //按下标记             var onoff = false;             var oldx = -10;             var oldy = -10;              //设置颜色             var linecolor = 'white';              //设置线宽             var linw = 4;              //添加鼠标移动事件             canvas.addEventListener('mousemove',draw,true);              //添加鼠标按下事件             canvas.addEventListener('mousedown',down,false);              //添加鼠标弹起事件             canvas.addEventListener('mouseup',up,false);              function down(event) {                 onoff = true;                 oldx = event.pageX-10;                 oldy = event.pagey-10;             }              function up() {                 onoff = false;             }              function draw(event) {                 if(onoff == true) {                     var newx = event.pageX-10;                     var newy = event.pageY-10;                     ctx.beginPath();                     ctx.moveTo(oldx,oldy);                     ctx.lineTo(newx,newy);                     ctx.strokeStyle = linecolor;                     ctx.lineCap = 'round';                     ctx.stroke();                      oldx = newx;                     oldy = newy;                 }             }         </script>     </body> </html>
登录后复制

免费学习视频分享:html视频教程
